MV 10C NT +EK 化学真空系统

MV 10C NT +EK 化学真空系统
专为化学设计的四级隔膜泵是针对腐蚀性气体和蒸汽的一种持续的、无油抽气的优秀解决方案,可以满足Z高要求。MV 10C NT 的四级泵结构有八个泵头,同时具有抽气速度大和达0.9mbar的超高JX真空的优点。所有与被抽介质接触的主要部件均由化学防腐的氟材料制造。PTFE “三明治”夹层结构的膜片增强了其可靠性和延长了其操作寿命。MV 10C NT +EK 增配了带出气口废气冷凝器 (EK),有效的溶剂回收系统使其成为更加出色和更加环境友好的系统。进气口的收集瓶为玻璃材质(外覆防护膜)防止颗粒和液滴进入泵内,可作为可选附件。 MV 10C NT 的大抽速和卓越的JX真空大大降低了过程时间,可满足非常高的真空需求,如真空网路中的平行操作。典型的应用包括连接干燥箱、大型旋转蒸发仪,用于中试、小型生产或公斤级实验室。针对复杂的操作环境,我们推荐在进气口选配的分离瓶,防止颗粒或液滴进入泵内。MV 10C NT +EK 的出气口冷凝器(也有附件可选配)可实现近QB 的溶剂回收效果,更有效地循环利用溶剂及进行主动的环境保护。
MV 10C NT +EK 化学真空系统特点
卓越的化学耐腐蚀性和蒸汽耐受性
即使在JX真空时仍有很高的抽速,使过程时间更短
操作安静,振动J低
使用气镇仍能达到很好的JX真空
高效的溶剂回收系统,使其成为一款环境友好的产品(配EK附件的型号)
JX真空:0.9mbar
开启气镇的JX真空:1.5mbar
ZD抽速50Hz:9.5m³/h
MV 10C NT +EK 化学真空系统参数
| ZD抽速50Hz | 9.5m³/h | |
| ZD抽速60Hz | 5.6cfm | |
| JX真空 | 0.9mbar/0.68torr | |
| 开启气镇的JX真空 | 1.5mbar/1.1torr | |
| 泵头数 | 8 | |
| 级数 | 4 | |
| Z低环境温度(运行),单位:℃。 | 10°C | |
| Z高环境温度(运行),单位:℃。 | 40°C | |
| Z低环境温度(存放),单位:℃。 | -10°C | |
| Z高环境温度(存放),单位:℃。 | 60°C | |
| ZD出气口压力(JD压力) | 1.1bar | |
| 进气口连接 | KFDN25小法兰 | |
| 出气口连接 | 软管喷嘴接头DN8-10mm | |
| 冷却液接口 | 2个DN6-8mm软管喷嘴接头 | |
| 额定功率(千瓦) | 0.53kW | |
| 额定速度,单位:50/60Hz | 1650min-1 | |
| 防护等级 | IP40 | |
| 尺寸长mm | 528mm | |
| 尺寸宽mm | 387mm | |
| 尺寸高mm | 395mm | |
| 重量 | 28.3kg | |
| 噪音水平50Hz/1500Upm/62%(VARIO)/1500Upm(VARIO-SP)/12500Upm(VACUU·PURE®) | 50dBA | |
| NRTL标准 | 否 | |
| 提供的选项 | 真空系统安装完毕,连接即可使用,附带说明书 | |
| 标称电压范围1 | 200-230V | |
| 电源频率1 | 50-60Hz |
MV 10C NT +EK 化学真空系统技术

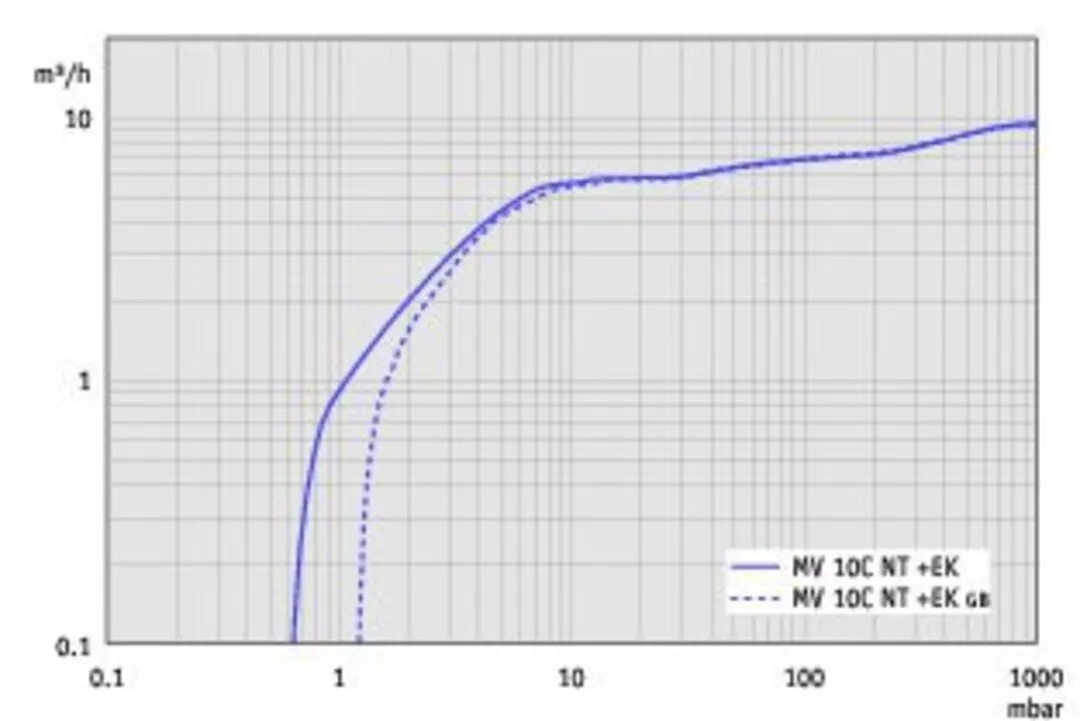

ZD抽速50Hz

ZD抽速60Hz

50Hz下的抽气曲线(100升容积)

60Hz下的抽气曲线(100升容积)
-
