RZ 2.5 旋片泵

RZ 2.5 旋片泵
RE 2.5单级旋片泵和RZ 2.5双级旋片泵性能优异,结构紧凑,重量轻。对于大量需求较好JX真空和中等抽速的实验室及工艺应用中,它们是理想的解决方案。该真空系统的结构紧凑,易于使用,结构合理。RZ 2.5也可选配的油雾过滤器FO和VS 16阀套件。 典型的应用有冻干、中真空蒸馏和小容积排气,例如:应用于微聚焦X-射线管或给容腔充纯净气体。
RZ 2.5 旋片泵特点
在接近JX真空时仍能有很高的抽气速度
开启气镇仍达到很好的JX真空
关机时可保持真空密封;无需外置防倒吸阀
储油体积大:换油间隔时间长
采用“镜筒”式设计,易于维护
JX真空:2x10-3mbar
开启气镇的JX真空:1x10-2mbar
ZD抽速50Hz:2.3m³/h
RZ 2.5 旋片泵参数
| ZD抽速50Hz | 2.3m³/h | |
| ZD抽速60Hz | 1.65cfm | |
| 不开气镇的JX分压,单位:mbar | 4x10-4mbar | |
| JX真空 | 2x10-3mbar/1.5x10-3torr | |
| 开启气镇的JX真空 | 1x10-2mbar/0.75x10-2torr | |
| 级数 | 2 | |
| Z低环境温度(运行),单位:℃。 | 12°C | |
| Z高环境温度(运行),单位:℃。 | 40°C | |
| Z低环境温度(存放),单位:℃。 | -10°C | |
| Z高环境温度(存放),单位:℃。 | 60°C | |
| ZD出气口压力(JD压力) | 1.1bar | |
| Z小注油量(B型泵油) | 0.36l | |
| ZD注油量(B型泵油) | 0.84l | |
| 进气口连接 | KFDN16小法兰 | |
| 出气口连接 | 软管喷嘴接头DN8-10mm | |
| 额定功率(千瓦) | 0.1kW | |
| 额定速度,单位:50/60Hz | 1500/1800min-1 | |
| 防护等级 | IP40 | |
| 尺寸长mm | 390mm | |
| 尺寸宽mm | 156mm | |
| 尺寸高mm | 240mm | |
| 重量 | 14.2kg | |
| 噪音水平50Hz/1500Upm/62%(VARIO)/1500Upm(VARIO-SP)/12500Upm(VACUU·PURE®) | 48dBA | |
| NRTL标准 | 否 | |
| 提供的选项 | 泵油已安装,泵体安装完毕,连接即可使用,附带说明书 | |
| 标称电压范围1 | 230V | |
| 电源频率1 | 50-60Hz |
RZ 2.5 旋片泵技术

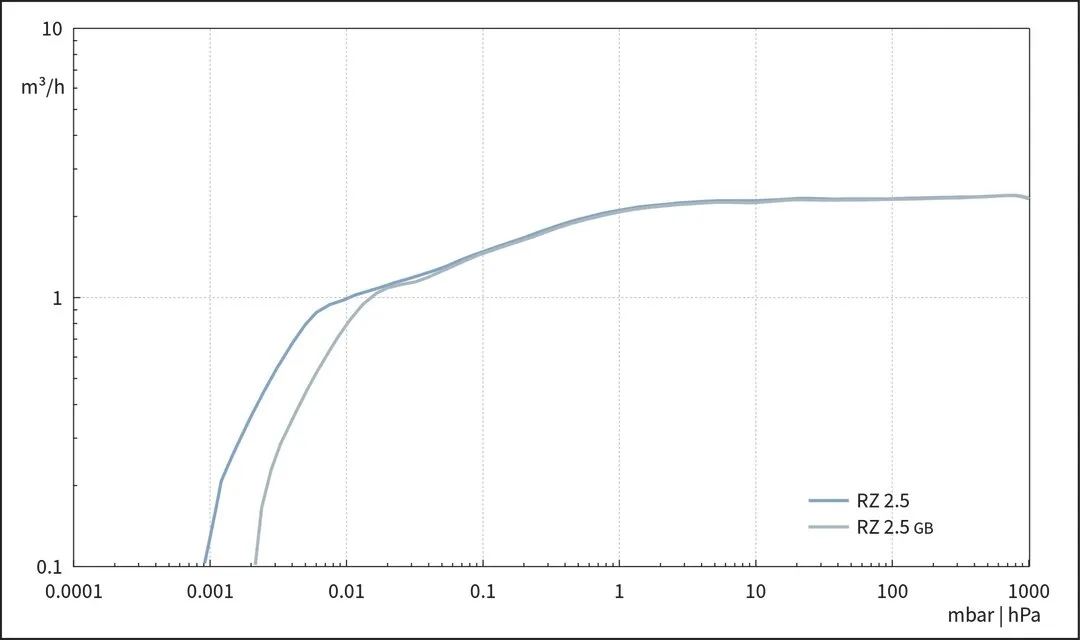

ZD抽速50Hz

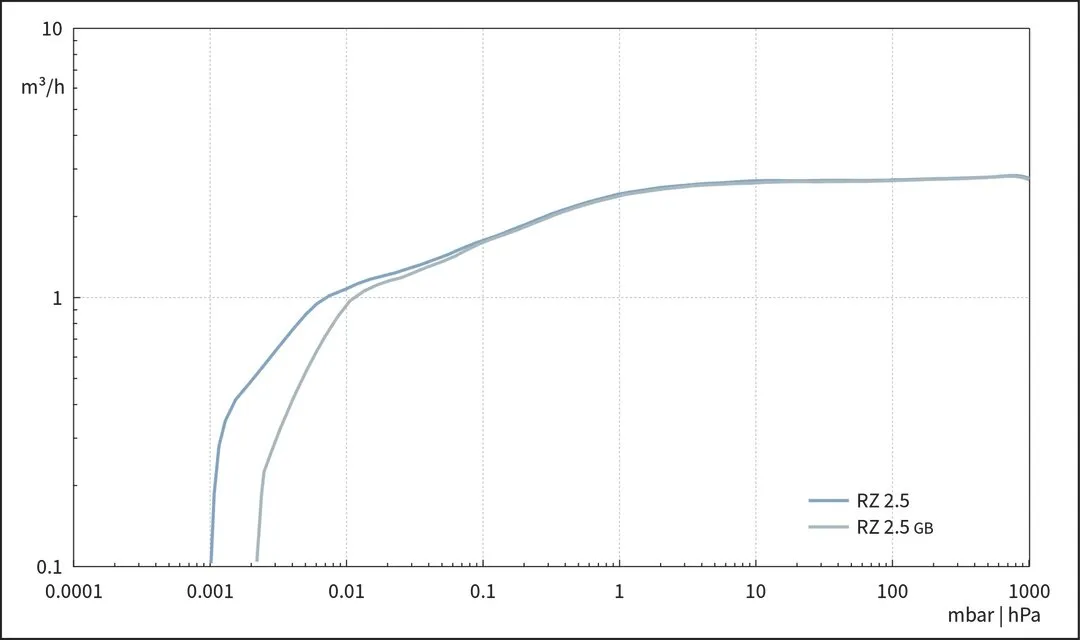

ZD抽速60Hz

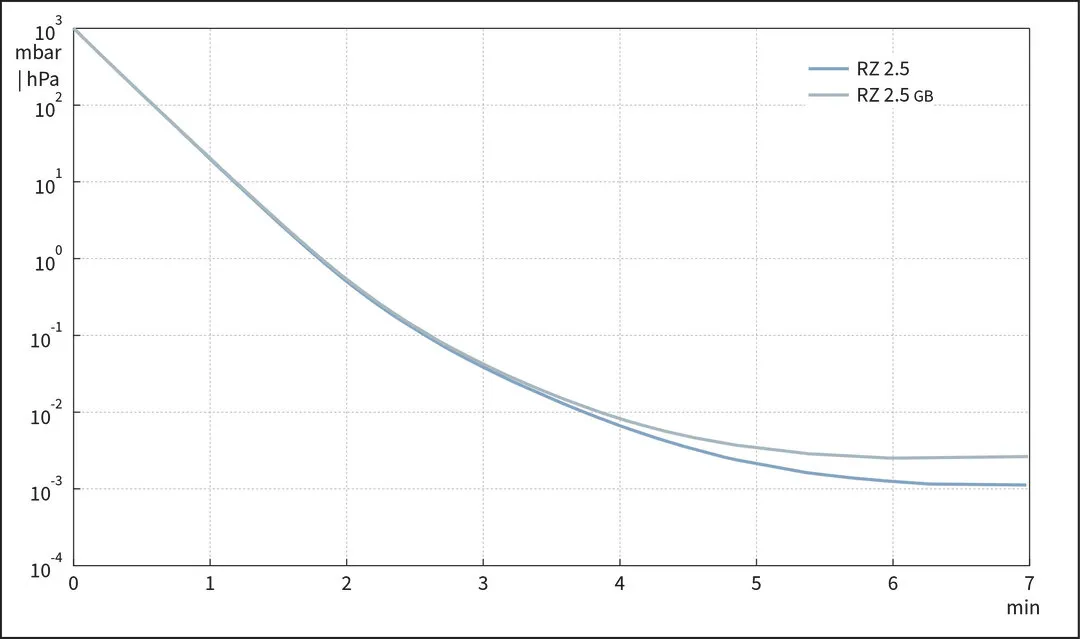

50Hz下的抽气曲线(10升容积)

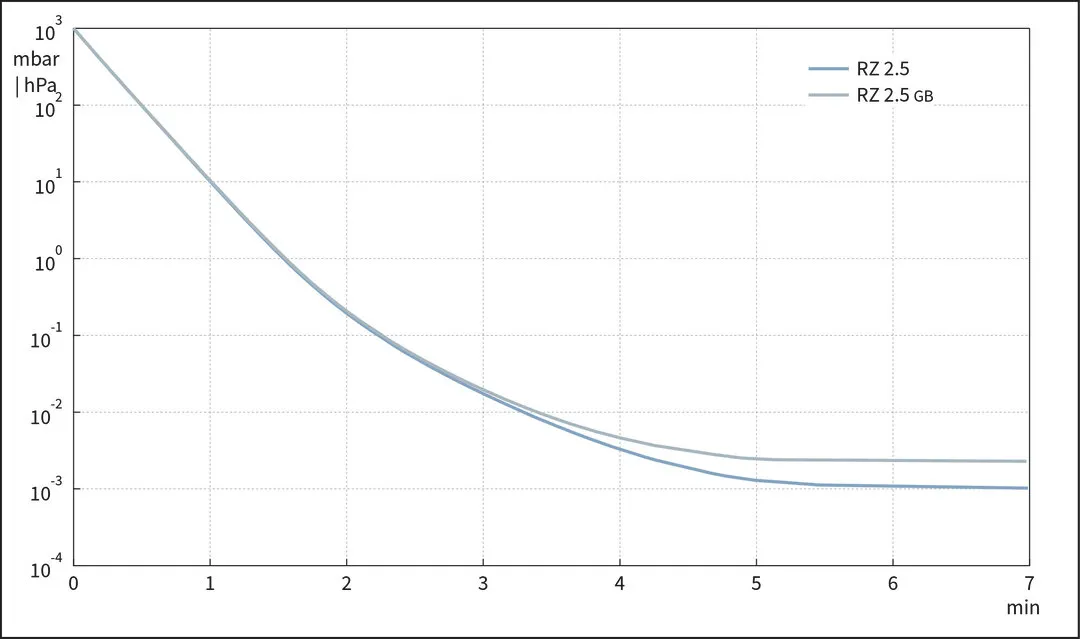

60Hz下的抽气曲线(10升容积)
-
